光伏逆变器
户用混合逆变器 3-6kW
EAHI-3000-6000SL

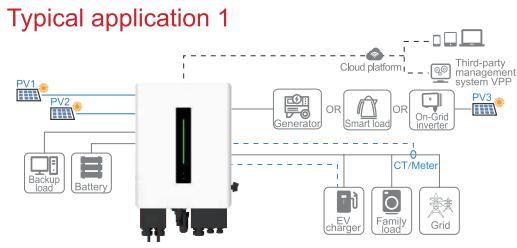

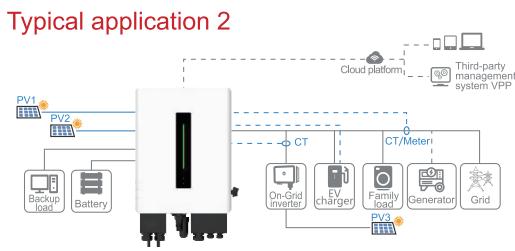

Typical application
技术参数
| 最大输入功率 | 4680W | 6500W | 7800W |
|---|---|
| 最大输入电压 | 550Vdc |
| 额定输入电压 | 360Vdc |
| 启动电压 | 150Vdc |
| 最低工作电压 | 100Vdc |
| MPPT电压范围 | 100~540Vdc |
| 每路MPPT最大输入电流 | 16A | 16A/16A |
| 每路MPPT最大短路电流 | 24A | 24A/24A |
| MPPT数量 | 1 | 2 |
| 每路MPPT输入串数 | 1 | 1/1 |
| 电池类型 | Li-ion, Lead-acid battery |
| 电压范围 | 42~58Vdc |
| 最大充电电流 | 66A | 75A | 100A |
| 最大放电电流 | 66A | 75A | 100A | 120A |
| 充电曲线 | 3 Stages/Equalization |
| 锂电池充电策略 | BMS self-adaption |
详细参数请咨询我们的销售团队
详细规格参数
| 型号 | EAHI-3000-SL | EAHI-3600-SL | EAHI-5000-SL | EAHI-6000-SL |
| 光伏输入 | ||||
| 最大输入功率 | 4680W | 6500W | 7800W | |
| 最大输入电压 | 550Vdc | |||
| 额定输入电压 | 360Vdc | |||
| 启动电压 | 150Vdc | |||
| 最低工作电压 | 100Vdc | |||
| MPPT电压范围 | 100~540Vdc | |||
| 每路MPPT最大输入电流 | 16A | 16A/16A | ||
| 每路MPPT最大短路电流 | 24A | 24A/24A | ||
| MPPT数量 | 1 | 2 | ||
| 每路MPPT输入串数 | 1 | 1/1 | ||
| 电池输入 | ||||
| 电池类型 | Li-ion, Lead-acid battery | |||
| 电压范围 | 42~58Vdc | |||
| 最大充电电流 | 66A | 75A | 100A | 100A |
| 最大放电电流 | 66A | 75A | 100A | 120A |
| 充电曲线 | 3 Stages/Equalization | |||
| 锂电池充电策略 | BMS self-adaption | |||
| 交流输入(并网) | ||||
| 电网类型 | Single phase(L/N/PE) | |||
| 输入电压范围 | 184~276Vac | |||
| 输入频率范围 | 50±5Hz/60±5Hz | |||
| 最大输入电流 | 21.8A | 26.2A | 36.5A | 40A |
| 交流输出(并网) | ||||
| 额定输出功率 | 3000W | 3600W | 5000W | 6000W |
| 最大视在输出功率 | 3000VA | 3600VA | 5000VA | 6000VA |
| 电网系统模式 | Single phase(L+N+PE) | |||
| 额定输出电压 | 220Vac/230Vac | |||
| 额定输出频率 | 50Hz/60Hz | |||
| 额定输出电流 | 13.6A/13.0A | 16.4A/15.7A | 22.7A/21.8A | 27.3A/26.1A |
| 最大输出电流 | 13.6A | 16.4A | 22.7A | 27.3A |
| 功率因数 | >0.99(0.8 leading~0.8 lagging) | |||
| THDi | ≤3%(@ Rated Power) | |||
| 交流输出(后备) | ||||
| 额定输出功率 | 3000W | 3600W | 5000W | 6000W |
| 最大视在功率 | 3000VA | 3600VA | 5000VA | 6000VA |
| 输出系统模式 | Single phase(L+N+PE) | |||
| 额定输出电压 | 230Vac(208/220/240Vac settable) | |||
| 额定输出频率 | 50Hz/60Hz | |||
| 额定输出电流 | 13.0A | 15.7A | 21.8A | 26.1A |
| 最大输出电流 | 14.4A | 17.3A | 24.0A | 28.8A |
| THDv | ≤3%(linear load) | |||
| 切换时间 | ≤10ms | |||
| 效率 | ||||
| 最大效率 | 97.8% | |||
| MPPT效率 | 99.9% | |||
| 保护功能 | ||||
| 保护功能 | Over/under voltage, over/under-frequency, over load, output short-circuit, over temperature, residual current monitoring unit, output over-current, insulation resistance, anti islanding, surge protection | |||
| 输出过压保护 | DC Type II/AC Type III | |||
| 其他 | ||||
| 通讯 | RS485, WIFI | |||
| 尺寸(宽×高×深)(mm) | 548x440x197 | |||
| 净重(kg) | 21.4 | 24.8 | ||
| 拓扑结构 | High frequency isolation(for battery) | |||
| 防护等级 | IP66 | |||
| 工作温度 | -25°C~+60°C(>45°C derating) | |||
| 冷却模式 | Natural cooling | |||
| 海拔 | 4000m | |||
| 1米处噪音 | ≤25dB | |||
| 安装方式 | Wall-mounted | |||
| 标准 | ||||
| 安全规范 | IEC/EN 62109-1/-2, AS62109 | |||
| 电磁兼容 | EN 61000-6-1/-2/-3/-4 | |||
| 并网标准 | CEI 0-21, DIN VDE V 0124-100:2020, VDE-AR-N 4105:2018, AS4777.2, NRS097-2-1, EN 50549-1 | |||
